Solutions

HSN8000 Series

Electrical control panel with multiple switches, buttons, and indicator lights.
Close-up of a network or server rack with circuit boards, switches, and connectors.

HSN8500: Large Scale Chassis

HSN8300: Mid-sized Chassis

Close-up of a network or communication equipment rack with various switches, ports, and indicators.

HSN8100: Compact Chassis

  • CPRI, eCPRI, Ethernet

  • DWDM In-shelf Mux

  • Gray to Color Transponding

  • Integrated OTDR

White Paper - Connecting the Present to the Digital Future with the Hybrid Fiber-Radio Fronthaul Networks
Data Sheet

  • • Proven reliability across a challenging set of access network use cases
    • Maximizes fiber efficiency & capacity while supporting a mix of services
    • Proven interoperability across leading vendors
    • Centralize components and lower OPEX with rich OA&M features
    • Expand mobile services quickly, especially when fiber is constrained

    HFR Networks offers a complete portfolio of WDM interface options and topologies for deploying scalable, cost-effective and highly reliable services throughout the access network domain. Our WDM solutions support CPRI/cCPRI transport with low latency, low jitter and robust flexibility across both active and passive WDM and DWDM configurations. HFR Networks’ solutions have been field proven at large-scale within mobile use cases for leading Tier 1 customers such as SKT and Verizon. The HSN8000 solution enables service providers to expand mobile services quickly, especially when fiber is constrained and/or there is an urgent business imperative to turn up new services fast.

M-Series TSN Portfolio

Network switch with multiple Ethernet ports and ventilation holes.

  • RoE, eCPRI, Ethernet

  • L2/L3 Features

  • IEEE 1914.3 RoE, 802.1 TSN

  • IWF Gateway

  • Fully Converged Networks

  • CPRI Fronthaul/URLLC

  • Large Venue/High Capacity

M6424: TSN Switch

Data Sheet

  • • Solution to normalize operations across leading 3rd party RAN suppliers
    • Encapsulated CPRI traffic with Radio-over-Ethernet (RoE)
    • Significant performance and cost benefits
    • RAN with Ethernet services on common infrastructure

    Packet M6424 Time Sensitive Networking (TSN) Switch
    HFR Networks delivered the industry’s first RAN packet transport solution with our M-Series products. We are working with Tier-1 service providers in the United States to reduce deployment and operational costs while facilitating a fast and smooth evolution to 5G wireless technologies. The provided solutions mark an important industry milestone with standards-based packet fronthaul to normalize operations across radio solutions from leading 3rd party suppliers. The M6424 solution is purpose built to enable an advanced mobile network with nanosecond timing – connecting cellular radios using Common Public Radio Interface (CPRI) and eCPRI packet solutions supporting both traditional and cloud-based NFV mobile architectures. CPRI traffic is encapsulated using IEEE Radio-over-Ethernet (RoE) standards to realize significant performance and cost benefits. The M6424 offers investment protection across traditional CPRI radios and enhanced or eCPRI ones, including ORAN solutions. Operators are also migrating to a virtual RAN (vRAN) or cloud architecture which requires high performance xHaul with the economics of an M6424 TSN solution. The M6424 is an ORAN compliant solution with proven interoperability across a diverse set of RAN vendors to ensure operators can implement today while supporting a graceful network evolution over time.

Smart Tunable Optics

Close-up of an SFP network module on a white background
A Cisco SFP transceiver module with a silver metal casing and a white label on top, designed for network data transmission.

  • Self-Tuning, I-Temp Rated

  • 10G Duplex & BiDi @ 20km

  • 25G Duplex @ 15km

  • Integrated w/flexiHaul EMS

  • Automatic Self-Tuning

  • Supports I-Temp Operating Temperatures

  • Monitoring Inventory and Loopback

Data Sheet

  • • Integrates 25G T-SFP28 duplex & 10G bidirectional optics
    • Significant benefits vs. sourcing many different channels of fixed optics
    • Built in diagnostics to simply system bring up and operations
    • Quickly add capacity to 4G in parallel with deploying new 5G services

    HFR Networks has innovated by adding smart tunable optics into the flexiHaul solutions, including a 25G T-SFP28 duplex and 10G bidirectional products. These solutions offer service providers significant operational benefits with the ability to work over a wide range of fiber channels using flexible and tunable solutions versus sourcing many different channels of fixed optics. HFR Networks also offers built in diagnostics and delivers key features like electrical loop back to simply system bring up and ongoing operations. These solutions help service providers quickly and economically add capacity and new services.

Optical Tools, Filters & Muxes

Electronic device with buttons and a screen next to a smartphone displaying an app interface

  • Handheld STO Host, OPM, VFL & OTDR

  • Integrates with Smart Device

flexiTester

Data Sheet
Electrical terminal block with blue connectors and yellow wiring on a white mounting base
A white electronic device, possibly a transformer or power supply unit, with a label on top and cooling fins on the sides.

  • Converged Ethernet

  • eCPRI Fronthaul, Backhaul & Enterprise

  • Small/Medium Venue

Passive Optical Solutions

Data Sheet

  • Field Tester for DWDM Tunables

  • Band Pass Filter for Cascading

  • Variable DWDM WL Drop

  • Thin Film Filter Technology

  • • Experience with large scale deployments globally
    • Close working relationships across leading OEMs
    • Ability to design and integrate components required
    • Rich portfolio; muxes, filters, enclosures…

    flexiTester: Multi-function Field Tester for DWDM  Wavelengths and Services

    HFR Networks has consolidated many pieces of equipment into one handheld device/Smartphone application to simplify the testing, validation, deployment and troubleshooting processes, while significantly benefiting SLA’s, decreasing deployment timelines, and improving overall field safety (especially at elevated heights). Open and standards-compliant for use across 3rd party vendors, the flexiTester supports all wavelengths including semi-active and passive DWDM networks. The flexiTester supports multiple critical functions, including; optical power meter, OTDR, Smart Tunable SFP+/SFP28 testing, and Visual Fault Finder functions. Please Note: OTDR functions require HFR Networks’ OTDR SFP+.  Have questions or need ordering information?  Contact us at: flexiTester@HFRnetworks.com

    Passive Optical Products
    HFR Networks can bring in additional components and make the required modifications to deliver the ideal design for our customers. HFR Networks, in combination with our parent company and a rich set of ecosystem partners, has access to many leading edge technologies. With our global deployment experience, we are skilled at integrating other best of breed components to provide high performance solutions with a rapid time to market, while always achieving superior economics to ensure the customer’s business case is met. We have a broad portfolio of components and can quickly deliver the modifications needed to meet a customer’s specific requirements.

O-BEX

  • Reduced Capital Expenditure

  • Faster MDUs Market Deployment

  • Superior Service Quality

  • Zero touch provisioning

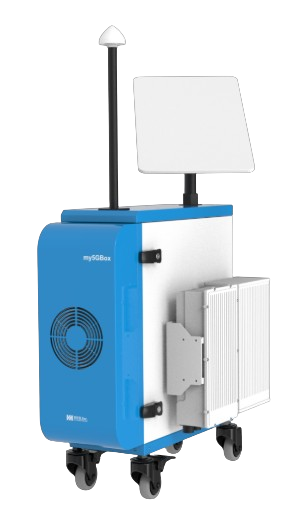

A mobile medical device labeled 'mySGBox' with a blue and white casing, wheels, a fan on the front, a white box attached at the side, and a white monitor arm on top.

  • • Reduced Capital Expenditure
    • Faster MDUs Market Deployment (any environment)
    • Superior Service Quality
    • Independent pre-integrated end to end service or Interoperability with the existing network
    • Integrating Wi-fi with the OBEX
    • Zero touch provisioning
    • Easy management via Service and Network Operation Center (SOC/NOC)

    O-BEX, the Ultimate Wireless Broadband Solution in a Box (Open Broadband Expansion)

    For broadband providers looking to dominate the MDU market, wireless broadband-in-a-box is the key to delivering high-quality internet service without the hassle. This plug-and-play solution enables operators to provide seamless, reliable, and fully managed broadband across MDUs without building out an entire infrastructure from scratch HFR provides a comprehensive portfolio of high performance, practical wireless broadband solutions designed for MDU environments.
